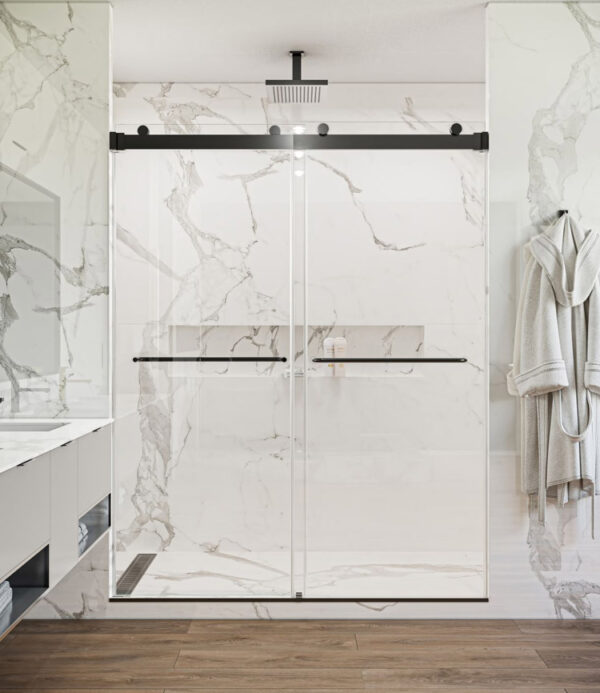

Verona Shower Doors

VERONA/ MODEL NUMBER: SW0146

DIMENSIONS

• 48 in. (1117 mm) wide x 76 in. (1930 mm) height
• Overhead clearance 71 3/4” (1822mm)
• Opening clearance 18 1/16 in. (458 mm) Min -22 1/16 in. (560 mm) Max.
• Fits 44 in. (1117 mm) – 48 in. (1219 mm) finished opening
• Up to 4 in. (101 mm) in width adjustment
• Up to 3/8 in. (10 mm) out-of-plumb adjustment

GLASS

• 5/16 in. (8 mm) clear glass
• ANSI certified tempered glass

HARDWARE

• Chrome finish
• Adjustable, gliding, stainless steel wheels

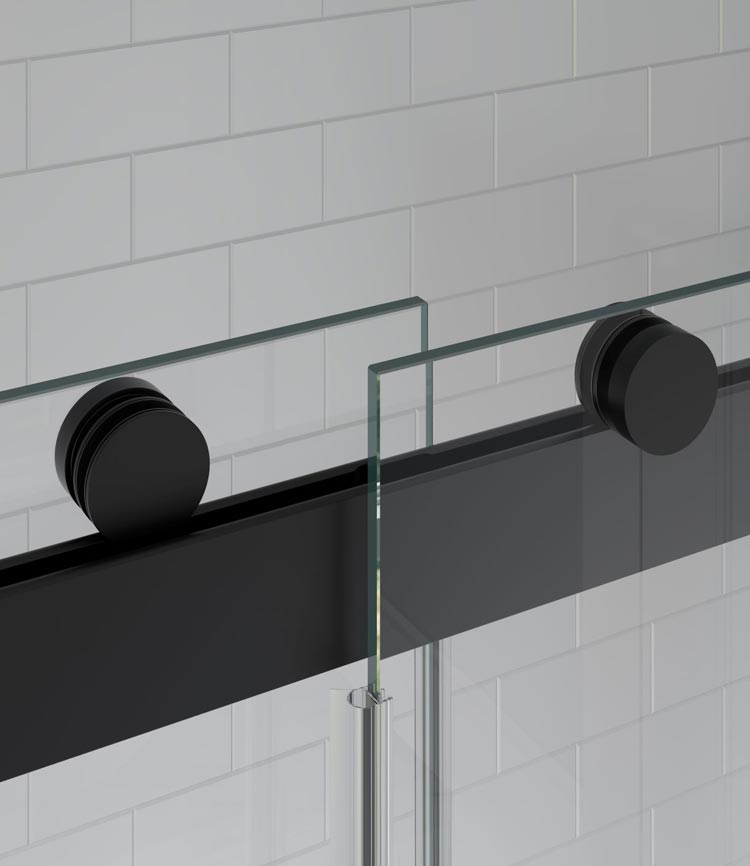

• Barn style rollers with built i n anti-jumping

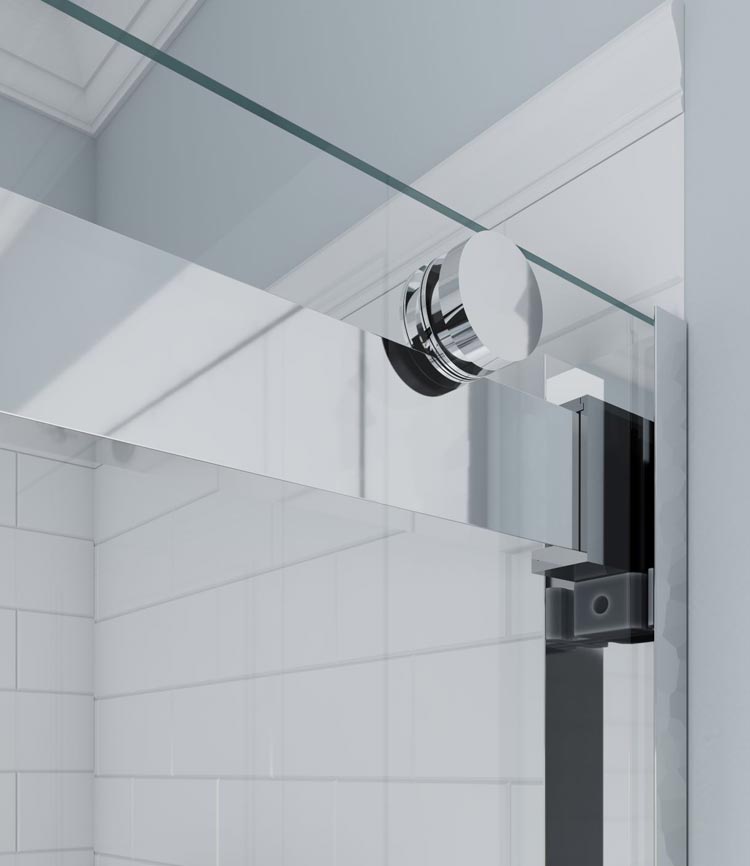

• optional wall profiles for 1/2 in. (12 mm) out of plumb adjustment.

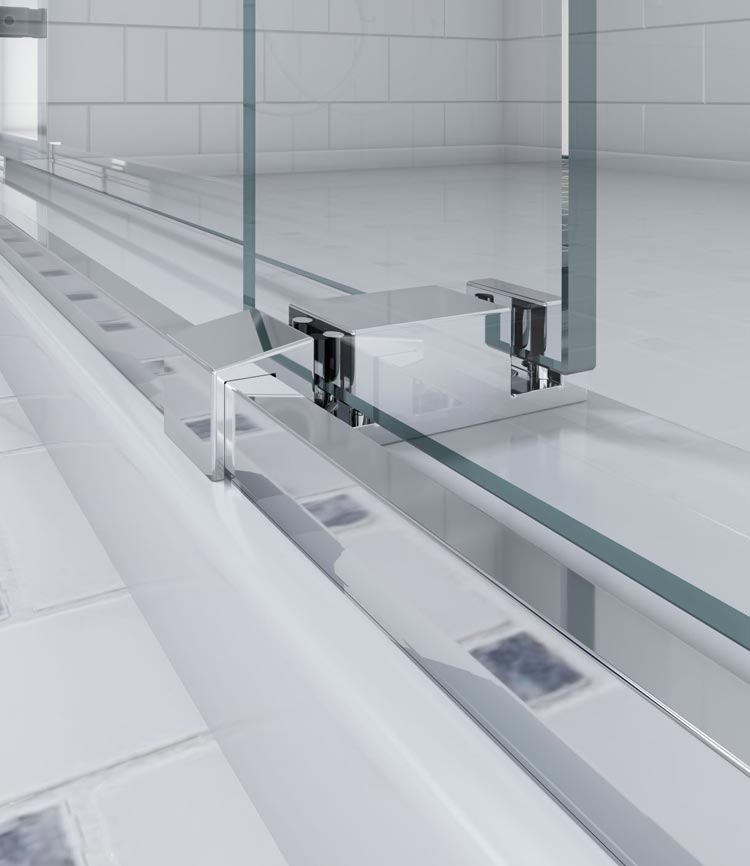

• Aluminium top rail, threshold and wall profiles

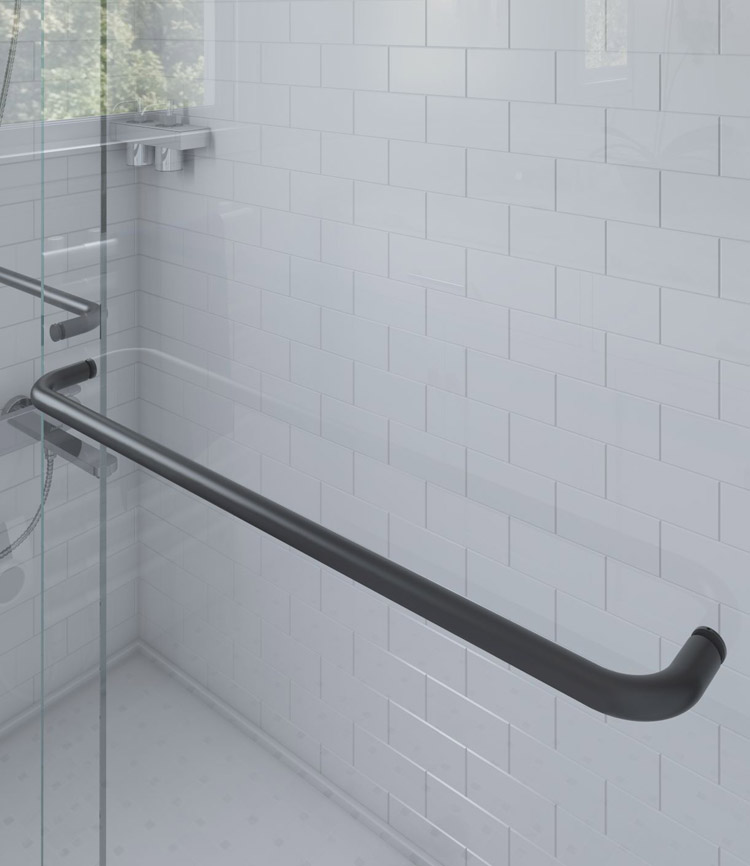

• Stainless steel 24 in. (609 mm) towel bar style handles
• Fully frameless glass design

STANDARD FEATURES

• Bypass sliding door
• Anti-collision blocks in wall profiles soften force on impact and keep doors locked in position.
• CPSC 16CFR 1201
• ANSI Z97.1
• IBC 2009 2403
